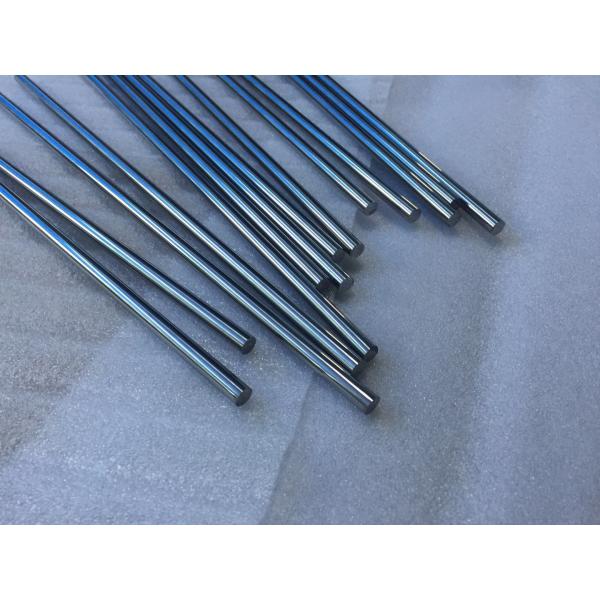

H6 Ground Tungsten Carbide Round Bar , Wear Resistance
Tungsten Bar Stock For End Mill Cutting Tool
Description & Application:
1. The ideal grade for every application
Now we recommend LX25 and LBC25 for your reference for different application :
LX25 :It is suitable for machining common steel, cast iron, stainless steel, heat‐resistant steel , nickel based alloys and titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end drills, screw taps, etc.
LBC25:It is suitable for machining titanium alloy , heat‐resistant alloys, stainless steel, hardened steel, grey cast iron, glass‐fiber Reinforced plastics, composite materials, etc. It is recommended to make drills and milling tools, etc.
2. Acknowledged quality
Our solid h6 tungsten carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for consistent performance capacity of your tools.
3. Application
Our h6 carbide round bar are used for cutting aluminum alloy ,cast iron , stainless steel,
Refractory alloy steel, nickel-based alloy , titanium alloy and nonferrous materials,
For making drills , drills , end mills &reamers , mold punches , core pins&hole drilling tools
4. Various types
Solid tungsten carbide round bar
Unground tunsgten rod, h6 ground tungsten carbide round bar
Chmafered rods
Special customized carbide rods
Production Process:
Below are the production processes of tungsten carbide rods, to ensure high quality, we assureed our customers that:
1. All materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
Recommended Grade:
| Grade | Grain size(μm) | Density(g/cm³) | Hardness(>=HRA) | TRS |
| LX25 | 0.8 | 14.5 | >=91.5 | >=3800 |
| LBC20 | 0.8 | 14.42 | >=91.5 | >=4000 |
| LBC25 | 0.6 | 14.03 | >=92.0 | >=4000 |
Dimension and Tolerance
| Dimension | Tolerance of diameter(mm) | Tolerance of length(mm) |
| BL-Φ4.0×330 | +0.3/+0.5 | +0/+5.0 |
| BL-Φ6.0×330 |
| BL-Φ8.0×330 |
| BL-Φ10.0×330 |
| BL-Φ10.0×330 | +0.30/+0.70 | +0/+5.0 |
| BL-Φ12.0×330 |
| BL-Φ14.0×330 |
| BL-Φ16.0×330 |
| BL-Φ18.0×330 | +0.40/+1.0 | +0/+5.0 |
| BL-Φ20.0×330 |
| BL-Φ22.0×330 |
| BL-Φ24.0×330 |
| BL-Φ26.0×330 |
| BL-Φ28.0×330 |
| BL-Φ30.0×330 |
Our Guarantee:
1. high quality durable tungsten carbide welding rods/cemented rods for milling for router bits made from 100% virgin raw material.
2. produced with advanced equipments and process.
3. all products go through in-process and final inspection.
4. free online technical service available.
5. stable and continuous production ability.
6. Quality Control System and strict inspection.
7. OEM and ODM are accepted as well.
8. Undertake orders of non-standard sizes at customer's requests.
